Daikin Multi-NX

Daikin Multi-NX - Image 2

Daikin Multi-NX - Image 3

Daikin Multi-NX - Image 4

Daikin Multi-NX

Category AC Multi Split

Multi-Split Inverter
Refrigeran R-32
Pilihan 4 Tipe Indoor
Wall Mounted
Low Static Ducted
Middle Static Ducted
Cassette

Pilihan Kapasitas

Tipe Indoor	Kapasitas	Model Indoor	Dimensi (HxWxD)	Berat	Pipa Cair	Pipa Gas	Harga
Wall Mounted	2.5 kW	CTKM25RVM4	285 × 770 × 223 mm	8 kg	1/4 inch	3/8 inch	Rp 3.730.000
Wall Mounted	3.5 kW	CTKM35RVM4	285 × 770 × 223 mm	8 kg	1/4 inch	3/8 inch	Rp 3.910.000
Wall Mounted	5.0 kW	CTKM50RVM4	295 × 990 × 263 mm	13 kg	1/4 inch	1/2 inch	Rp 4.960.000
Wall Mounted	6.0 kW	CTKM60RVM4	295 × 990 × 263 mm	13 kg	1/4 inch	1/2 inch	Rp 5.680.000
Wall Low Static Ducted	2.5 kW	CDXP25RVM4	200 × 700 × 620 mm	21 kg	1/4 inch	3/8 inch	Rp 4.740.000
Wall Low Static Ducted	3.5 kW	CDXP35RVM4	200 × 700 × 620 mm	21 kg	1/4 inch	3/8 inch	Rp 5.100.000
Wall Low Static Ducted	5.0 kW	CDXM50RVM4	200 × 900 × 620 mm	27 kg	1/4 inch	1/2 inch	Rp 7.060.000
Wall Low Static Ducted	6.0 kW	CDXM60RVM4	200 × 1.100 × 620 mm	30 kg	1/4 inch	1/2 inch	Rp 8.130.000
Wall Low Static Ducted	7.1 kW	CDXM71RVM4	200 × 1.100 × 620 mm	30 kg	1/4 inch	5/8 inch	Rp 8.340.000

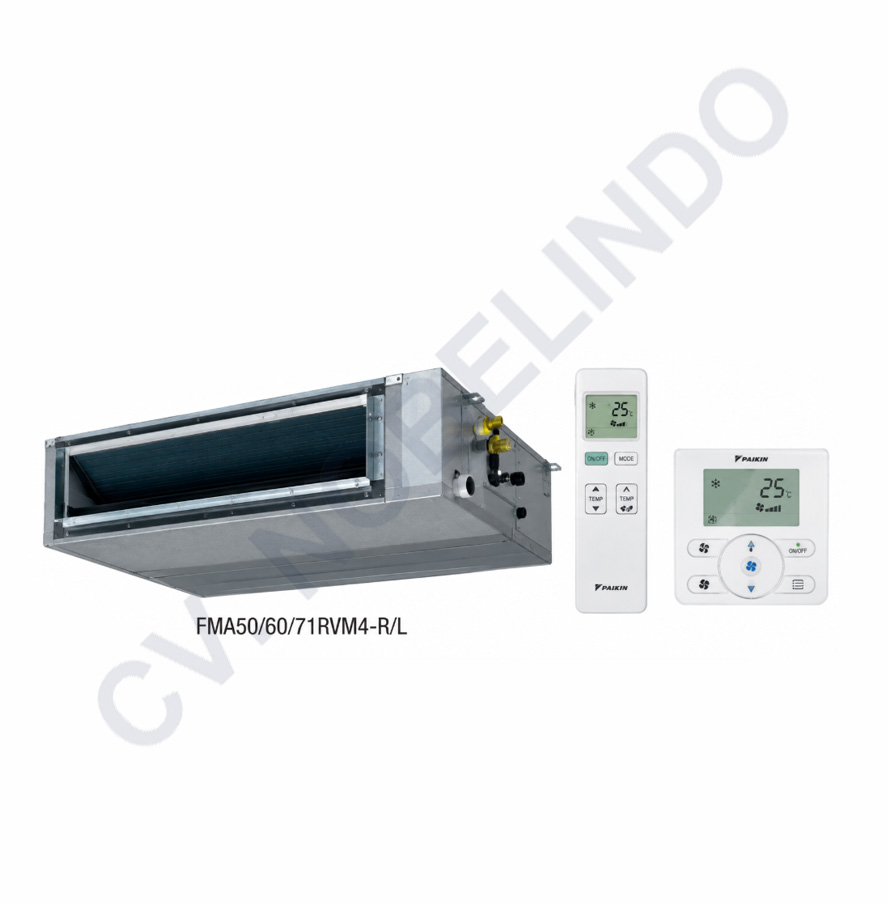

Wall Middle Static Ducted	5.0 kW	FMA50RVM4-R/L	245 × 1.000 × 800 mm	37 kg	1/4 inch	1/2 inch	Rp 10.120.000 / Rp 10.790.000
Wall Middle Static Ducted	6.0 kW	FMA60RVM4-R/L	245 × 1.000 × 800 mm	37 kg	1/4 inch	1/2 inch	Rp 11.490.000 / Rp 12.160.000
Wall Middle Static Ducted	7.1 kW	FMA71RVM4-R/L	245 × 1.000 × 800 mm	37 kg	1/4 inch	5/8 inch	Rp 12.170.000 / Rp 12.840.000

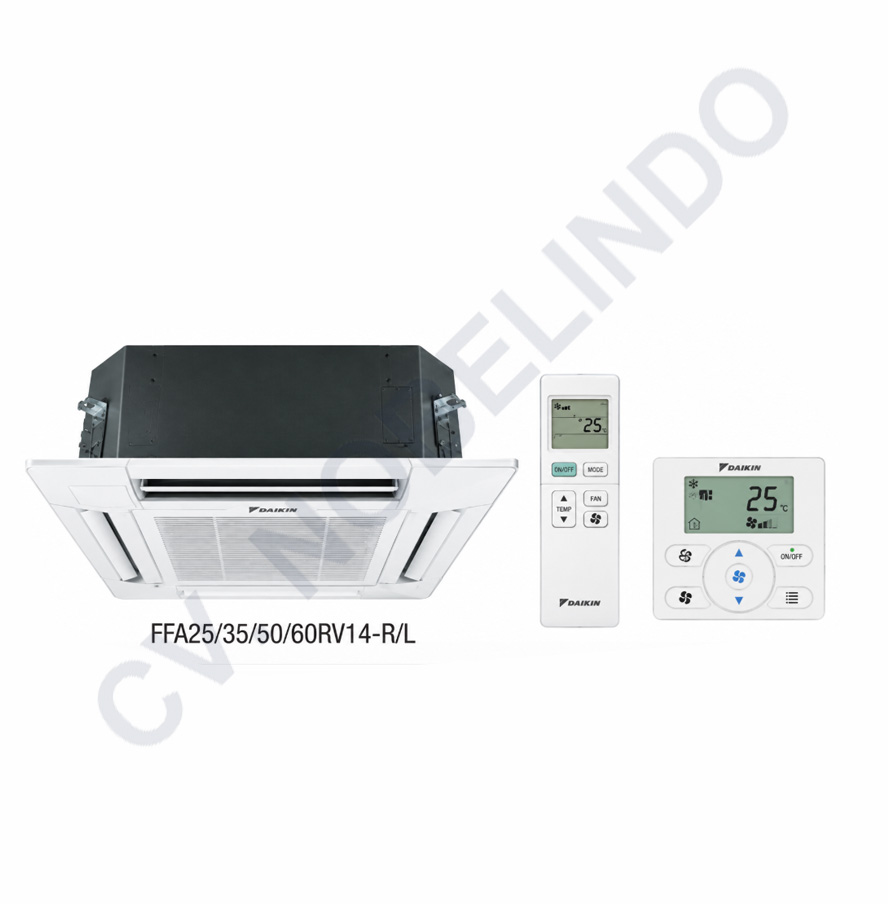

Cassette	2.5 kW	FFA25RV14-R/L	260 (286) × 575 × 575 mm	17.5 kg	1/4 inch	3/8 inch	Rp 12.970.000 / Rp 14.160.000
Cassette	3.5 kW	FFA35RV14-R/L	260 (286) × 575 × 575 mm	17.5 kg	1/4 inch	3/8 inch	Rp 13.490.000 / Rp 14.680.000
Cassette	5.0 kW	FFA50RV14-R/L	260 (286) × 575 × 575 mm	17.5 kg	1/4 inch	1/2 inch	Rp 16.470.000 / Rp 17.660.000
Cassette	6.0 kW	FFA60RV14-R/L	260 (286) × 575 × 575 mm	17.5 kg	1/4 inch	1/2 inch	Rp 16.680.000 / Rp 17.870.000

Spesifikasi	4MKM68RVM4	4MKM80RVM4	5MKM100RVM4
Model Outdoor	4MKM68RVM4	4MKM80RVM4	5MKM100RVM4
Kapasitas	6.8 kW Max. 9.4 kW	8.0 kW Max. 10.2 kW	10.0 kW Max. 13.0 kW
Dimensi (HxWxD)	695 × 930 × 350 mm	695 × 930 × 350 mm	990 × 940 × 320 mm
Berat Mesin Outdoor	49 kg	52 kg	79 kg
Ukuran Pipa Cair	1/4 × 4	1/4 × 4	1/4 × 5
Ukuran Pipa Gas	3/8 × 2 1/2 × 2	3/8 × 1 1/2 × 1 5/8 × 2	3/8 × 2 1/2 × 1 5/8 × 2
Maksimal Pipa — Panjang	60 m 30 m untuk setiap ruangan	70 m 30 m untuk setiap ruangan	80 m 30 m untuk setiap ruangan
Maksimal Pipa — Tinggi	15 m	15 m	15 m
Tegangan	220–240V, 1Ø, 50Hz	220–240V, 1Ø, 50Hz	220–240V, 1Ø, 50Hz
Daya Listrik	Tergantung kombinasi & operasi indoor	Tergantung kombinasi & operasi indoor	Tergantung kombinasi & operasi indoor
Harga	Rp 20.580.000	Rp 24.630.000	Rp 28.360.000

Spesifikasi	Detail
Sistem	Daikin Multi-NX
Tipe	Multi Split Inverter
Refrigeran	R-32
Indoor Unit	Wall Mounted Indoor Unit Wall Low Static Ducted Indoor Unit Wall Middle Static Ducted Indoor Unit Cassette Indoor Unit
Outdoor Unit	4MKM68RVM4 4MKM80RVM4 5MKM100RVM4
Jumlah Koneksi	Hingga 4 indoor unit untuk seri 4MKM Hingga 5 indoor unit untuk seri 5MKM
Kapasitas Outdoor	6.8 kW 8.0 kW 10.0 kW
Kapasitas Maksimum	9.4 kW 10.2 kW 13.0 kW
Maksimal Panjang Pipa	60 m — 4MKM68RVM4 70 m — 4MKM80RVM4 80 m — 5MKM100RVM4
Maksimal Tinggi Pipa	15 m
Tegangan	220–240V, 1Ø, 50Hz
Asal Indoor	Daikin Thailand
