Daikin Packaged Inverter — Tipe Ducted

Spesifikasi	8 PK	10 PK	12 PK	16 PK	18 PK	20 PK
Nama / Set	SDR200QY	SDR250QY	SDR300QY	SDR400QY	SDR450QY	SDR500QY
Kapasitas Maksimum	8 PK 79,000 Btu/h 23.2 kW	10 PK 99,000 Btu/h 28.9 kW	12 PK 118,000 Btu/h 34.7 kW	16 PK 158,000 Btu/h 46.3 kW	18 PK 177,000 Btu/h 52.0 kW	20 PK 197,000 Btu/h 57.7 kW
Daya Listrik	8,920 W	10,700 W	11,190 W	15,690 W	21,220 W	26,390 W
COP	2.60 W/W	2.70 W/W	3.10 W/W	2.95 W/W	2.45 W/W	2.19 W/W
Refrigeran	R-410A	R-410A	R-410A	R-410A	R-410A	R-410A
Tegangan	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz
Maksimal Pipa — Panjang	70 m	70 m	70 m	70 m	70 m	70 m
Maksimal Pipa — Tinggi	50 m	50 m	50 m	50 m	50 m	50 m
Controller	BRC2E61 (Wired)	BRC2E61 (Wired)	BRC2E61 (Wired)	BRC2E61 (Wired)	BRC2E61 (Wired)	BRC2E61 (Wired)
Harga	Rp 77.090.000	Rp 84.250.000	Rp 117.010.000	Rp 148.470.000	Rp 164.010.000	Rp 178.490.000

Spesifikasi	8 PK	10 PK	12 PK	16 PK	18 PK	20 PK

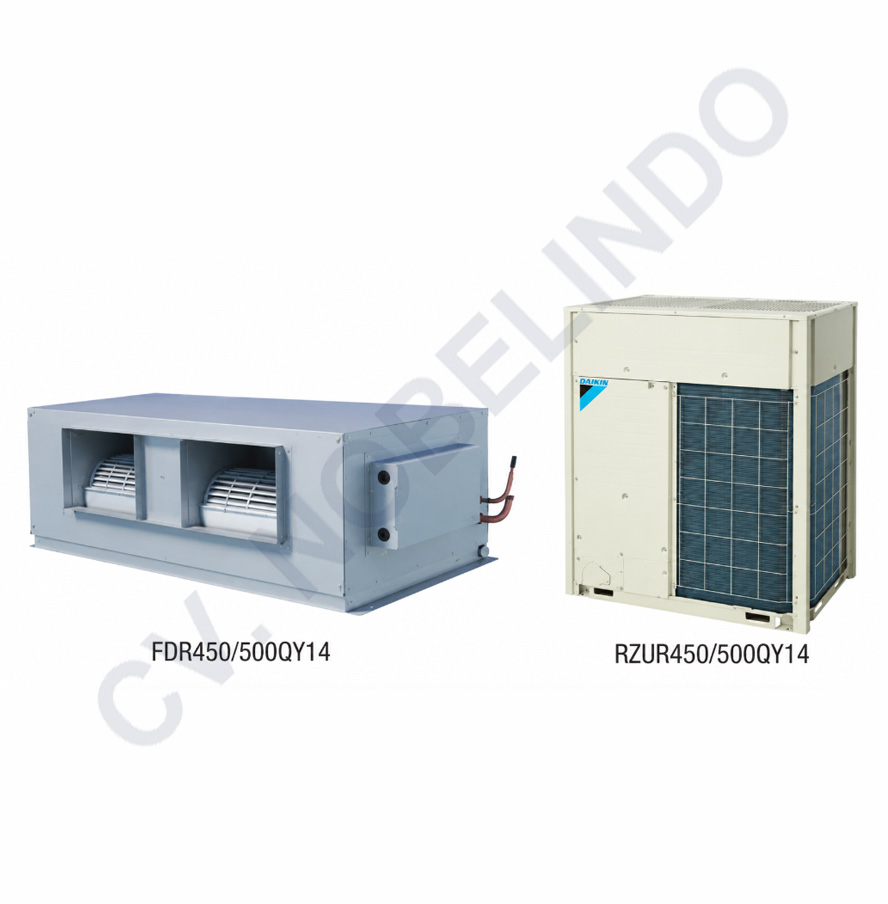

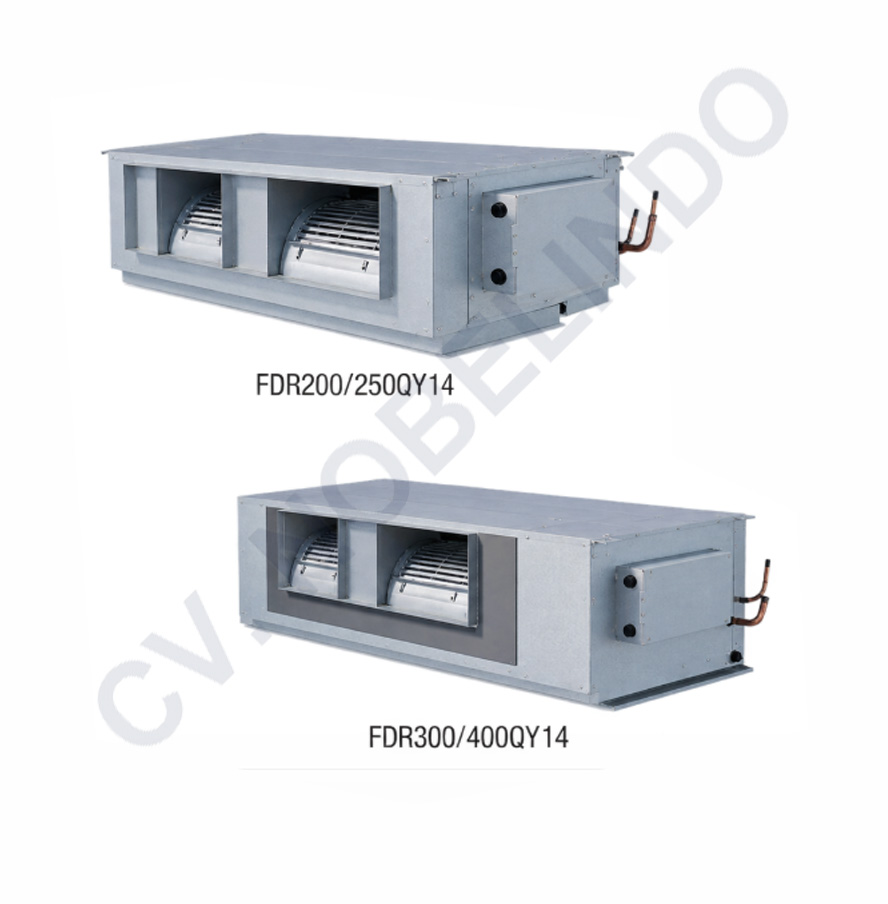

Model Indoor	FDR200QY14	FDR250QY14	FDR300QY14	FDR400QY14	FDR450QY14	FDR500QY14
Kapasitas	8 PK 79,000 Btu/h 23.2 kW	10 PK 99,000 Btu/h 28.9 kW	12 PK 118,000 Btu/h 34.7 kW	16 PK 158,000 Btu/h 46.3 kW	18 PK 177,000 Btu/h 52.0 kW	20 PK 197,000 Btu/h 57.7 kW
Dimensi Indoor (HxWxD)	500 × 1.130 × 850 mm	500 × 1.130 × 850 mm	625 × 1.980 × 850 mm	625 × 1.980 × 850 mm	760 × 2.195 × 870 mm	760 × 2.195 × 870 mm
Berat Mesin Indoor	106 kg	106 kg	177 kg	177 kg	204 kg	204 kg
Asal Produksi	Daikin Thailand	Daikin Thailand	Daikin Thailand	Daikin Thailand	Daikin Thailand	Daikin Thailand

Spesifikasi	8 PK	10 PK	12 PK	16 PK	18 PK	20 PK

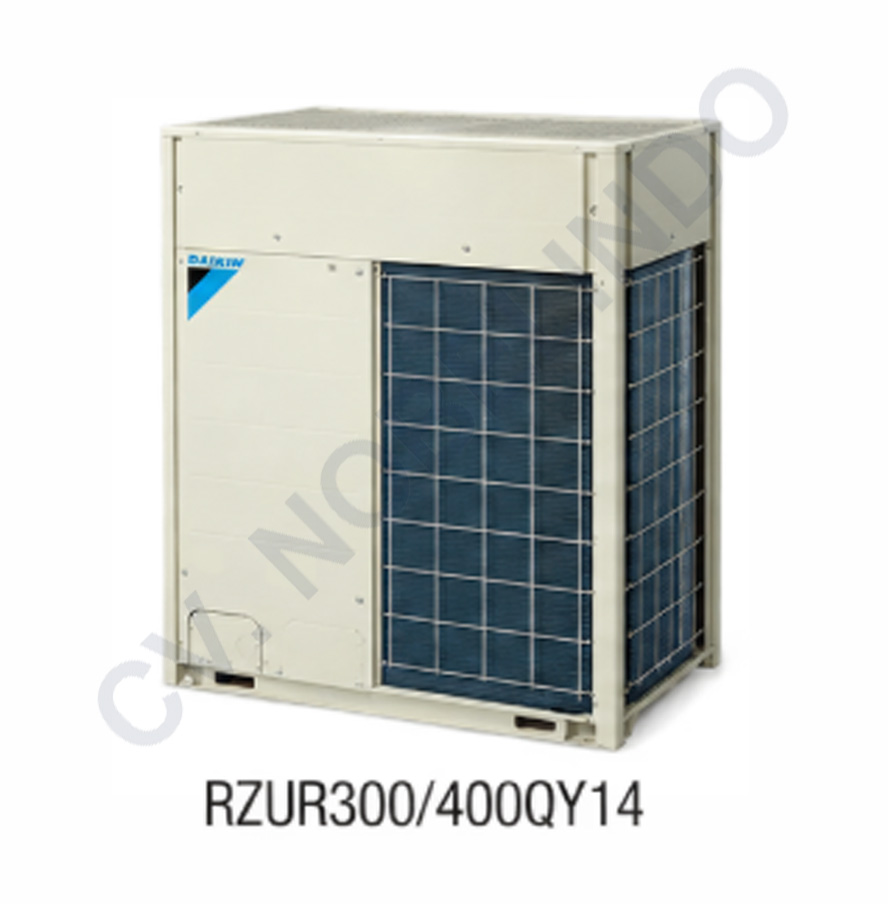

Model Outdoor	RZUR200QY14	RZUR250QY14	RZUR300QY14	RZUR400QY14	RZUR450QY14	RZUR500QY14
Dimensi Outdoor (HxWxD)	870 × 1.100 × 460 mm	1.657 × 930 × 765 mm	1.657 × 1.240 × 765 mm	1.657 × 1.240 × 765 mm	1.657 × 1.240 × 765 mm	1.657 × 1.240 × 765 mm
Berat Mesin Outdoor	113 kg	185 kg	260 kg	291 kg	291 kg	291 kg
Ukuran Pipa Cair	3/8 inch	3/8 inch	1/2 inch	1/2 inch	5/8 inch	5/8 inch
Ukuran Pipa Gas	3/4 inch	7/8 inch	1 1/8 inch	1 1/8 inch	1 1/8 inch	1 1/8 inch
Maksimal Pipa — Panjang	70 m	70 m	70 m	70 m	70 m	70 m
Maksimal Pipa — Tinggi	50 m	50 m	50 m	50 m	50 m	50 m
Asal Produksi	Daikin Thailand	Daikin Thailand	Daikin Thailand	Daikin Thailand	Daikin Thailand	Daikin Thailand

Pilihan Kapasitas
