Daikin VRV A Series – Outdoor Unit
Daikin VRV A Series – Outdoor Unit - Image 2
Daikin VRV A Series – Outdoor Unit - Image 3

Daikin VRV A Series – Outdoor Unit

Categories ,
  • Kapasitas 6–60 HP
  • Kapasitas hingga 168 kW

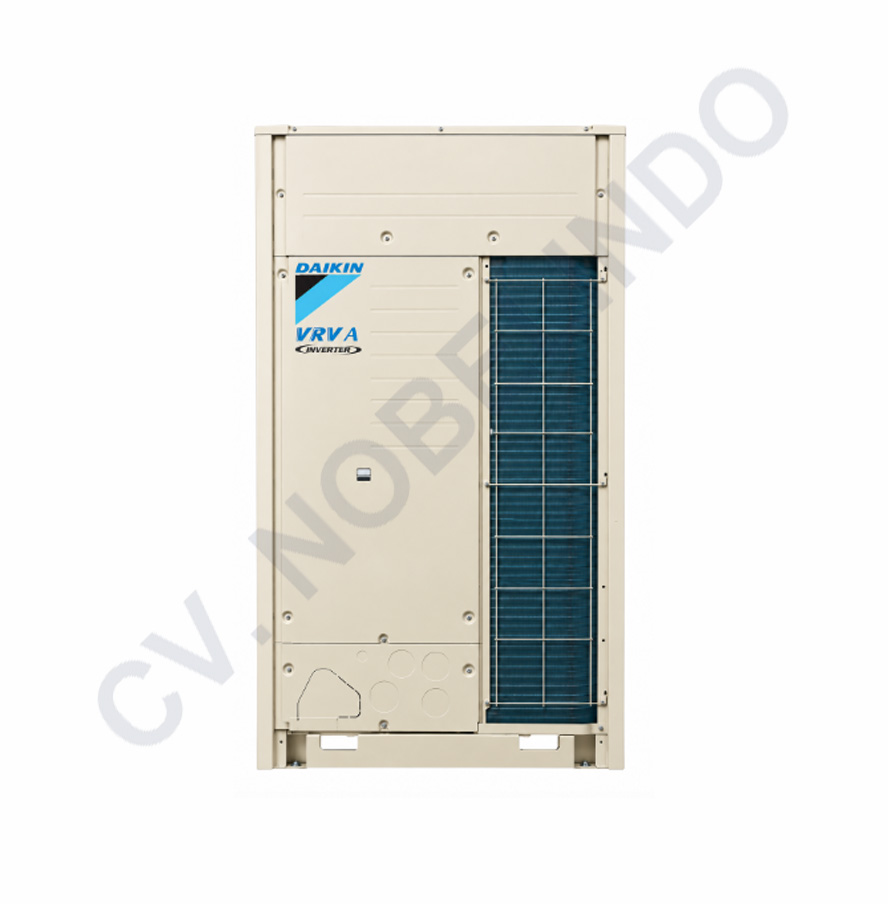

  • Single Outdoor Unit

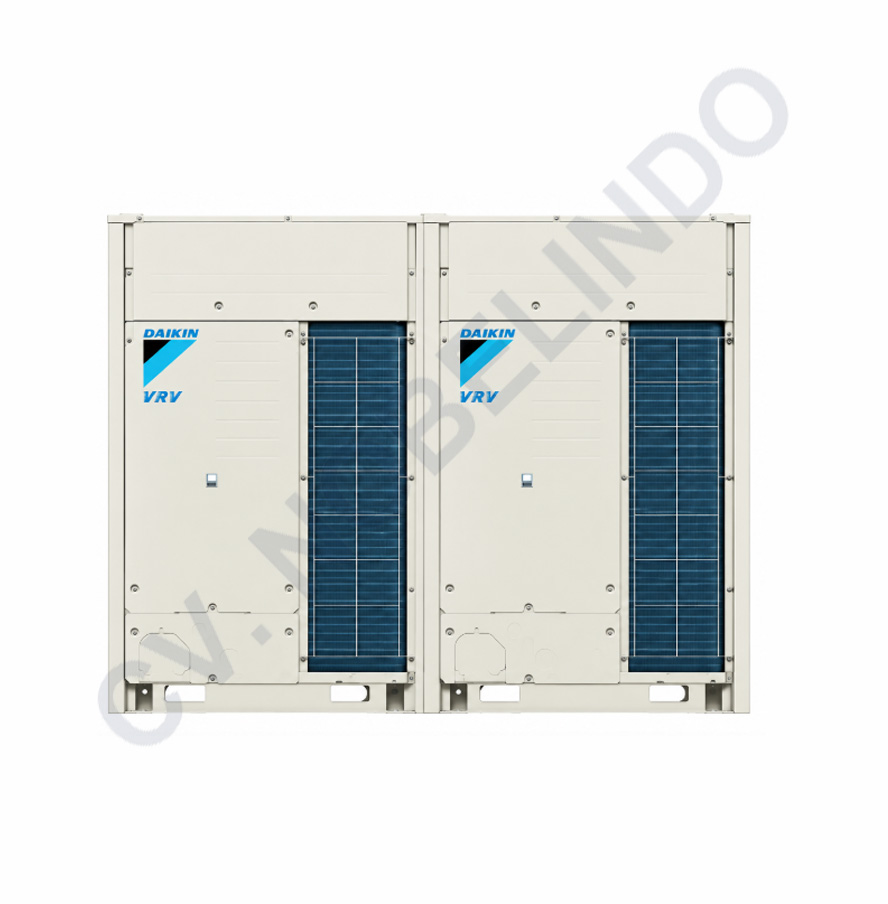

  • Double Outdoor Unit

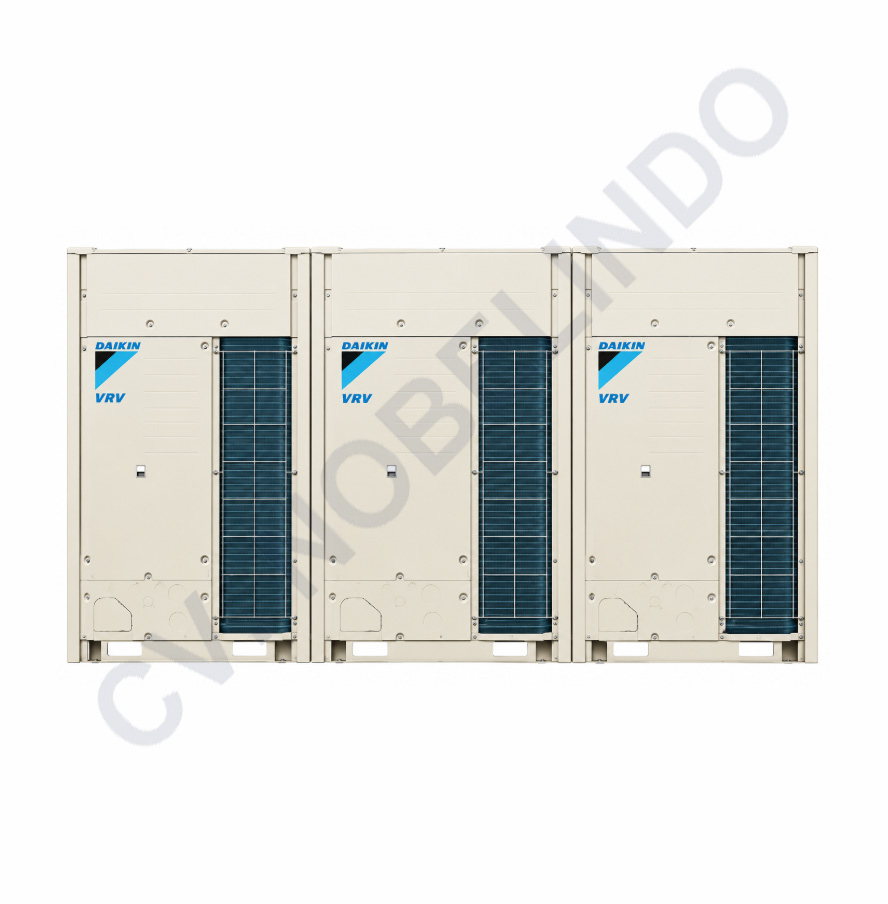

  • Triple Outdoor Unit
  • Pilihan kapasitas setiap 2 HP
  • Power Supply 380–415V, 3 Phase, 4 Wire, 50Hz

Pilihan Kapasitas

Spesifikasi 6 HP 8 HP 10 HP 12 HP 14 HP 16 HP 18 HP 20 HP
Model RXQ6AY14 RXQ8AY14 RXQ10AY14 RXQ12AY14 RXQ14AY14 RXQ16AY14 RXQ18AY14 RXQ20AYM
Kapasitas Pendinginan 6 HP 54,600 Btu/h 16.0 kW 8 HP 76,400 Btu/h 22.4 kW 10 HP 95,500 Btu/h 28.0 kW 12 HP 114,000 Btu/h 33.5 kW 14 HP 136,000 Btu/h 40.0 kW 16 HP 154,000 Btu/h 45.0 kW 18 HP 171,000 Btu/h 50.0 kW 20 HP 191,000 Btu/h 56.0 kW
Power Supply 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz
Dimensi (H × W × D) 1,657 × 930 × 765 mm 1,657 × 930 × 765 mm 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm
Berat Mesin 175 kg 185 kg 215 kg 260 kg 285 kg — — —
Sound Level 56 dB(A) 57 dB(A) 59 dB(A) 60 dB(A) 61 dB(A) — — —
Spesifikasi 18 HP 20 HP 22 HP 24 HP 26 HP 28 HP 30 HP 32 HP 34 HP 36 HP 38 HP 40 HP
Model Set RXQ18AMY14 RXQ20AMY14 RXQ22AMY14 RXQ24AMY14 RXQ26AMY14 RXQ28AMY14 RXQ30AMY14 RXQ32AMY14 RXQ34AMY14 RXQ36AMY14 RXQ38AMY14 RXQ40AMY14
Combination Outdoor Unit RXQ8AY14 + RXQ10AY14 RXQ8AY14 + RXQ12AY14 RXQ10AY14 + RXQ12AY14 RXQ12AY14 + RXQ12AY14 RXQ12AY14 + RXQ14AY14 RXQ12AY14 + RXQ16AY14 RXQ12AY14 + RXQ18AY14 RXQ14AY14 + RXQ18AY14 RXQ16AY14 + RXQ18AY14 RXQ18AY14 + RXQ18AY14 RXQ18AY14 + RXQ20AY14 RXQ20AY14 + RXQ20AY14
Kapasitas Pendinginan 18 HP 172,000 Btu/h 50.4 kW 20 HP 191,000 Btu/h 55.9 kW 22 HP 210,000 Btu/h 61.5 kW 24 HP 229,000 Btu/h 67.0 kW 26 HP 251,000 Btu/h 73.5 kW 28 HP 268,000 Btu/h 78.5 kW 30 HP 285,000 Btu/h 83.5 kW 32 HP 307,000 Btu/h 90.0 kW 34 HP 324,000 Btu/h 95.0 kW 36 HP 341,000 Btu/h 100 kW 38 HP 362,000 Btu/h 106 kW 40 HP 382,000 Btu/h 112 kW
Dimensi (H × W × D) 1,657 × 930 × 765 mm + 1,657 × 930 × 765 mm 1,657 × 930 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 930 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 930 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 930 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 930 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 930 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm + 1,657 × 1,240 × 765 mm 1,657 × 1,240 × 765 mm + 1,657 × 1,240 × 765 mm
Berat Mesin 175 + 185 kg 185 + 185 kg 185 + 215 kg 185 + 260 kg — — — 215 + 260 kg 260 + 260 kg 260 + 285 kg 285 + 285 kg —
Sound Level 65 dB(A) 60 dB(A) 61 dB(A) 62 dB(A) 63 dB(A) — — 64 dB(A) 66 dB(A) 68 dB(A) 65 dB(A) 67 dB(A)
Power Supply 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz 380–415V, 3 Phase, 4 Wire, 50Hz
Spesifikasi 42 HP 44 HP 46 HP 48 HP 50 HP 52 HP 54 HP 56 HP 58 HP 60 HP
Konfigurasi Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit Triple Outdoor Unit
Kapasitas Pendinginan 42 HP 399,000 Btu/h 117 kW 44 HP 420,000 Btu/h 123 kW 46 HP 444,000 Btu/h 130 kW 48 HP 461,000 Btu/h 135 kW 50 HP 478,000 Btu/h 140 kW 52 HP 495,000 Btu/h 145 kW 54 HP 512,000 Btu/h 150 kW 56 HP 532,000 Btu/h 156 kW 58 HP 553,000 Btu/h 162 kW 60 HP 573,000 Btu/h 168 kW
Power Supply 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz 3 Phase 4-Wire System, 380–415V, 50Hz
Dimensi (H × W × D) 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit 1,657 × 1,240 × 765 mm + kombinasi unit
Sound Level 65 dB(A) 66 dB(A) 68 dB(A) 65 dB(A) 67 dB(A) 65 dB(A) 66 dB(A) 68 dB(A) 69 dB(A) 70 dB(A)
