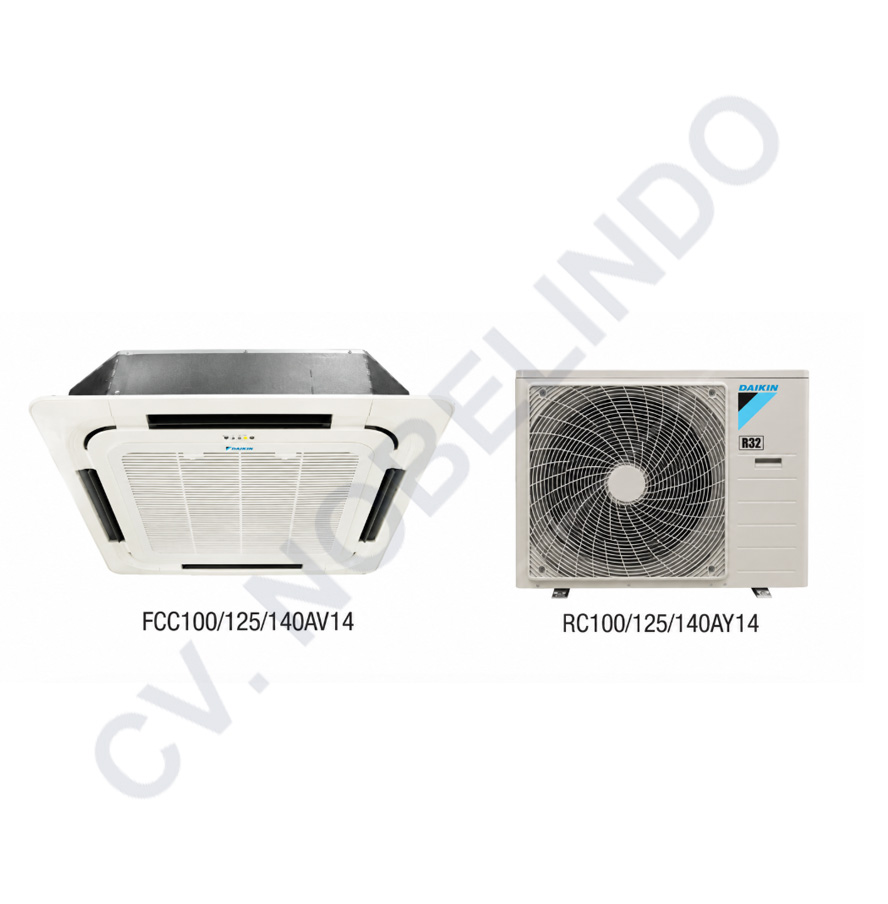

SkyAir Non Inverter R-32 – Tipe Cassette Eight Way Flow

Spesifikasi	2 PK	2.5 PK	3.5 PK 1Ø	3.5 PK 3Ø	4 PK	5 PK	6 PK
Model Set	SCC50AVR/L	SCC60AVR/L	SCC85AVR/L	SCC85AYR/L	SCC100AYR/L	SCC125AYR/L	SCC140AYR/L
Kapasitas	2 PK 18,500 Btu/h 5.42 kW	2.5 PK 24,000 Btu/h 7.03 kW	3.5 PK 30,000 Btu/h 8.79 kW	3.5 PK 30,000 Btu/h 8.79 kW	4 PK 36,000 Btu/h 10.55 kW	5 PK 42,000 Btu/h 12.31 kW	6 PK 48,000 Btu/h 14.07 kW
Daya Listrik	1,680 W	2,130 W	2,710 W	2,700 W	3,220 W	3,620 W	4,100 W
COP	3.23	3.30	3.24	3.26	3.28	3.40	3.43
Refrigeran	R-32	R-32	R-32	R-32	R-32	R-32	R-32
Power Supply	220–240V, 1Ø, 50Hz	220–240V, 1Ø, 50Hz	220–240V, 1Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz	380–415V, 3Ø, 50Hz
Harga Wired	Rp 19.500.000	Rp 22.470.000	Rp 26.670.000	Rp 28.320.000	Rp 34.820.000	Rp 40.340.000	Rp 42.330.000
Harga Wireless	Rp 18.640.000	Rp 21.610.000	Rp 25.810.000	Rp 27.460.000	Rp 33.960.000	Rp 39.440.000	Rp 41.470.000
Harga Wireless (Wi-Fi)	Rp 19.140.000	Rp 22.110.000	Rp 26.310.000	Rp 27.960.000	Rp 34.460.000	Rp 39.980.000	Rp 41.970.000

Spesifikasi	2 PK	2.5 PK	3.5 PK 1Ø	3.5 PK 3Ø	4 PK	5 PK	6 PK
Model Outdoor	RC50AV14	RC60AV14	RC85AV14	RC85AY14	RC100AY14	RC125AY14	RC140AY14
Dimensi (HxWxD)	615 × 845 × 300 mm	615 × 845 × 300 mm	695 × 930 × 350 mm	695 × 930 × 350 mm	852 × 1.030 × 400 mm	852 × 1.030 × 400 mm	852 × 1.030 × 400 mm
Berat Mesin	40 kg	46 kg	56 kg	57 kg	64 kg	79 kg	84 kg
Ukuran Pipa Cair	1/4 inch	1/4 inch	3/8 inch	3/8 inch	3/8 inch	3/8 inch	3/8 inch
Ukuran Pipa Gas	1/2 inch	1/2 inch	5/8 inch	5/8 inch	5/8 inch	5/8 inch	5/8 inch
Maksimal Pipa — Panjang	35 m	35 m	50 m	50 m	50 m	50 m	50 m
Maksimal Pipa — Tinggi	20 m	20 m	30 m	30 m	30 m	30 m	30 m

Spesifikasi	2 PK	2.5 PK	3.5 PK 1Ø	3.5 PK 3Ø	4 PK	5 PK	6 PK
Model Indoor	FCC50AV14	FCC60AV14	FCC85AV14	FCC85AY14	FCC100AV14	FCC125AV14	FCC140AV14
Dimensi (HxWxD)	246 × 840 × 840 mm	246 × 840 × 840 mm	246 × 840 × 840 mm	246 × 840 × 840 mm	288 × 840 × 840 mm	288 × 840 × 840 mm	288 × 840 × 840 mm
Berat Mesin	22 kg	22 kg	22 kg	22 kg	25 kg	25 kg	25 kg
